DRIMS

Well Name

Development Well

Target Depth

m

Reference:

Well

Distance

Bearing

deg

Objective

Target TVD

m

Net H.D.

m

Net Direction

deg

Elevation

m

Reg.

Interval Perforated

m

Status

Expected bottom hole temperature

deg

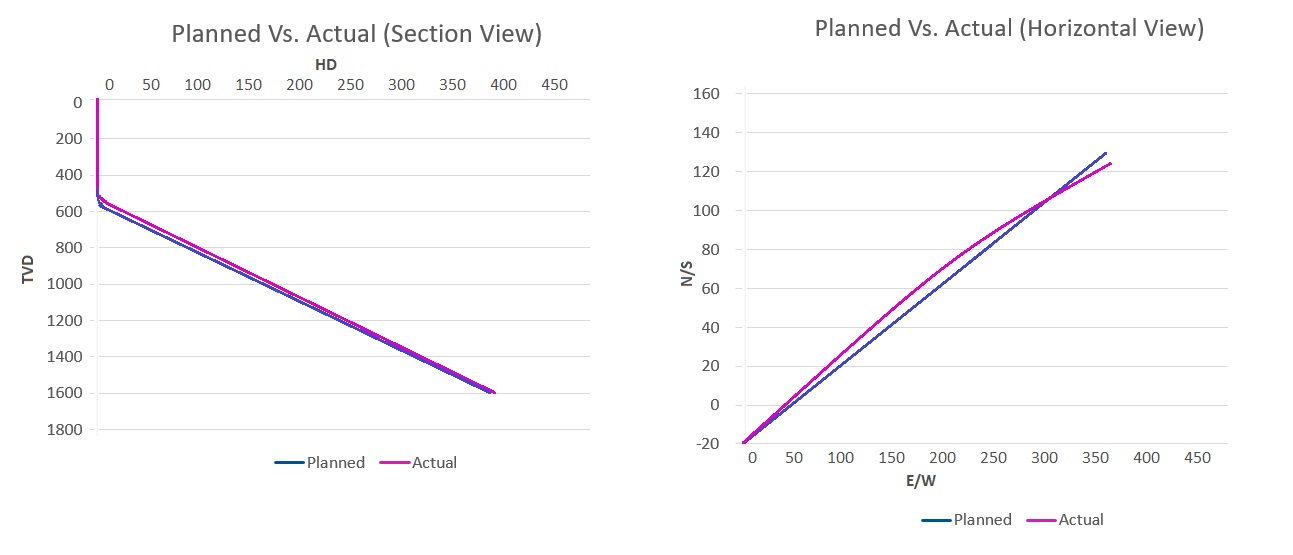

Planning Of Well Trajectory

	TVD	N/S	E/W	HD	Azimuth
Start Location
End Location

KOP

m

BUR

m

Max Inclination Angle

deg

Generate Path

S. No.	MD	Inc.	Azi.	TVD	N/-S	E/-W	VS	C.Dist.	C.Dir.	DLs	Build R.
1	0	0	69.66	0	0	0	0	0	0	0	0
2	500	0	69.66	500	0	0	0	0	0	0	0
3	560	7	69.66	559.9	1.3	3.4	-3.5	3.7	69.66	3.5	3.5
4	620	14	69.66	618.8	5.1	13.7	-13.8	14.6	69.66	3.5	3.5
5	680	21	69.66	676	11.3	30.6	-31	32.6	69.66	3.5	3.5
6	685.7	21.67	69.66	681.3	12.1	32.5	-32.9	34.7	69.66	0	0
7	785.7	21.67	69.66	774.2	24.9	67.2	-68	71.6	69.66	0	0
8	885.7	21.67	69.66	867.2	37.7	101.8	-103	108.5	69.66	0	0
9	985.7	21.67	69.66	960.1	50.6	136.4	-138.1	145.5	69.66	0	0
10	1085.7	21.67	69.66	1053	63.4	171	-173.1	182.4	69.66	0	0
11	1185.7	21.67	69.66	1146	76.2	205.6	-208.2	219.3	69.66	0	0
12	1285.7	21.67	69.66	1238.9	89.1	240.3	-243.2	256.2	69.66	0	0
13	1385.7	21.67	69.66	1331.8	101.9	274.9	-278.3	293.2	69.66	0	0
14	1485.7	21.67	69.66	1424.8	114.7	309.5	-313.3	330.1	69.66	0	0
15	1508.5	21.67	69.66	1446	117.7	317.4	-321.3	338.5	69.66	0	0
16	1641.9	21.67	69.66	1569.6	134.8	363.6	-368.1	387.8	69.66	0	0

Save & Next

Well Name : C4

S. No.	MD	Inc.	Azi.	TVD	N/-S	E/-W	VS	C.Dist.	C.Dir.	DLs	Build R.	Turn R.
1	0	0	0	0	0	0	0	0	0	0	0	0
2	475	0	0	475	0	0	0	0	0	0	0	0
3	483.2	1	171.9	483.2	-0.1	0	0	0.1	172	3.66	3.66	628.9
4	492.3	1	175.8	492.3	-0.2	0	0	0.2	173	0.23	0	12.86
5	501.8	1.3	121.7	501.8	-0.4	0.1	-0.1	0.4	161	3.41	0.95	170.8
6	530.7	7	75.2	530.6	-0.1	2	-2	2	92	6.87	6.8	9.59
7	568.5	10.8	71.2	567.9	1.7	8	-8.1	8.2	78.2	2.63	2.21	7.89
8	597	13	67.2	595.7	3.9	13.7	-13.8	14.2	74.2	0.86	0.64	2.55
9	625.3	15.8	63.6	623.2	6.8	20	-20.2	21.1	71.3	3.73	3.67	2.67
10	653.8	19	65.2	650.3	10.5	27.7	-28.1	29.6	69.3	2.82	2.81	0.62
11	682	20.8	65.3	676.8	14.6	36.6	-37.1	39.4	68.3	0.11	0	0.33
12	710.7	19.9	64.6	730.7	18.9	45.7	-46.3	49.4	67.6	1.28	-1.26	0.63
13	739.5	22.7	65.3	730.5	23.3	55.2	-56	59.9	67.1	1.58	1.56	0.63

Save & Next

Well Name : C4

S. No.	Depth From	Depth To	Course Length	Drill Mode	Average TFO	Start Time	Stop Time	Drlg Hrs	Circ Hrs	Flow GPM	SPP Off Btm psi	SPP On Btm psi	RPM	WOB Kips	Trq On KFt Lbs	ROP mts/hr	Comments
1	480.00	495.00	15.0	R		05.25	05.50	0.42		540	1090	1180		4-5		36.0
2	495.00	517.00	22.0	S	29L	05.50	06.05	0.25		540	1100	1210		5-6		88.0	Start Kick Off

Save & Next
